Important Note: Once you place the order, we will contact you to confirm chainring size(s), spider and decal colour.

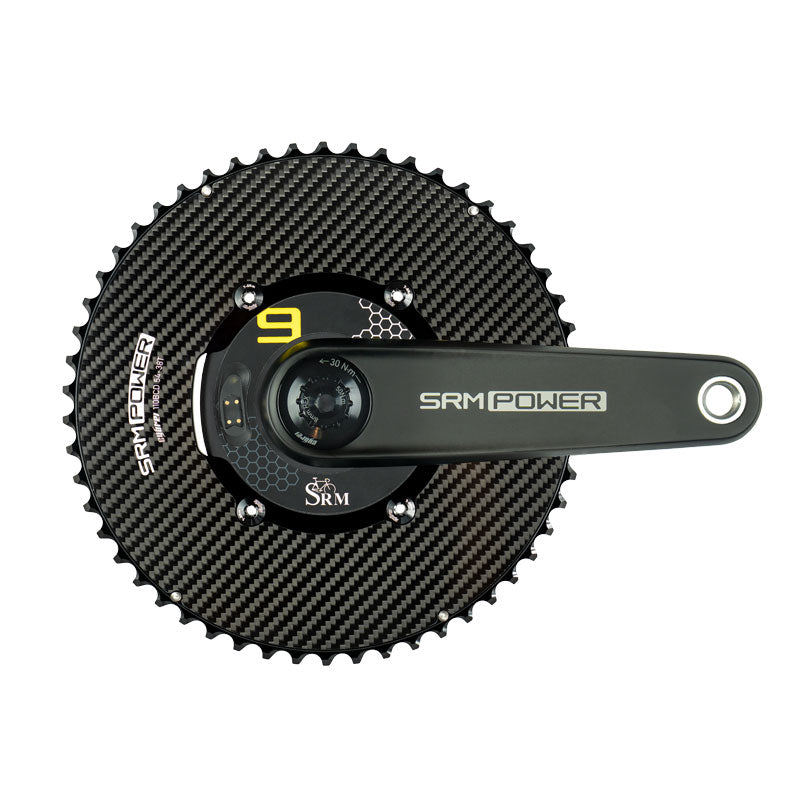

With the Cybrei Carbon crank, you can build the lightest SRM PowerMeter yet!

The Cybrei crank is available in two versions that offer a “Plug and Play” experience for your Shimano or SRAM group sets:

Shimano 24 mm compatible:

This crank integrates the 24 mm Shimano compatible titanium spindle. As a result, the crank set only weighs 340 g at 170 mm (Incl. both arm and the spindle). The set has a Q-Factor of 148 mm. The crank is compatible with bottom brackets with up to 92 mm width. If you install it on your gravel bike, please make sure your BB is not wider than that.

SRAM DUB compatible:

This crank integrates the SRAM DUB™ compatible 28.9 mm Aluminium spindle into the left crank arm. As a result, the crank set only weighs 331 g at 170 mm (Incl. both arm and the spindle). The set has a Q-Factor of 148 mm.
With a Dub to 30 mm adapter, this crank can also be used in 30 mm bottom brackets. The crank is compatible with bottom brackets with up to 92 mm width. If you install it on your gravel bike, please make sure your BB is not wider than that.

The Origin Cybrei Dub, shares the same spider as our modular Origin system. This gives you the freedom to upgrade, change and swap the component how you like it. Of course, that also means the best possible compatibility with future bikes and group sets.

Thanks to its modular components, The Origin PowerMeter is compatible with:

Shimano Dura Ace, Shimano Ultegra, Shimano 105 and Shimano GRX group sets (The bottom bracket will need to be changed)
SRAM Rival eTap AXS, SRAM Force eTap AXS and SRAM RED eTap AXS group sets

Technical Specs:

Weight	SRAM DUB compatible from 519 g (CarbonTI X-Single 38T), Shimano 24 mm compatible from 528 g (CarbonTI X-Single 38T)
Accuracy	±1%
Bolt Circle Diameter	110 mm asym. 4 bolt
BB compatibilty	24 mm diameter with up to 92 mm width, 29 mm diameter with up to 92 mm width
Connection	ANT+, Bluetooth
Q-Factor	148 mm
Runtime	100h (rechargeable)
Spindle	24 mm titanium, Dub Aluminium
Cadence	Magnetless Cadence
Cycling dynamics	Combined Pedal Smoothness, Left/Right Balance
Warranty	2 Years
Included	Chainrings and Screws (optional), Cranks, SRM PowerMeter, USB Typ A Charge Cable
